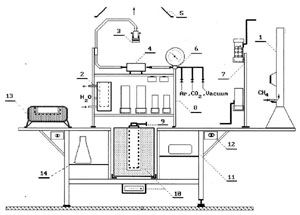

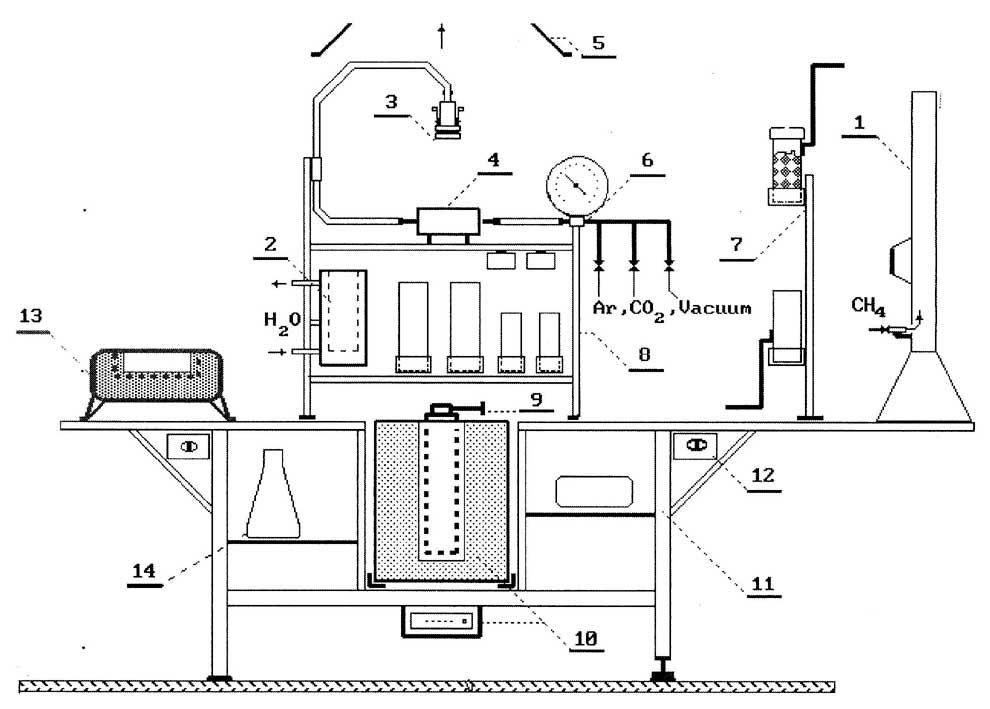

Figure. 1.
The laboratory set for high temperature reaction
This equipment set used for charring of organic materials,
production of lithium carbide, carbon dioxide, etc.
1. Chimney\Flue Apparatus
2. Water cooled cooling chamber
3. Water cooled hermetised head
4. Particulate filter
5. Exhaust ventilation
6. Pressure gauge with valves for vacuum, argon gas and carbon dioxide
7. Rack with pyrolysis containment tubes
8. Rack for holding of reaction vessels and various equipment
9. Reaction vessel holding lid
10. Large electric oven (1000 Watt) with thermal couple mounting
11. Laboratory metal table
12. Valves for water, gas and vacuum pump switch
13. Flat oven (800 Watt) with thermal couple mounting
14. Cone reaction vessel

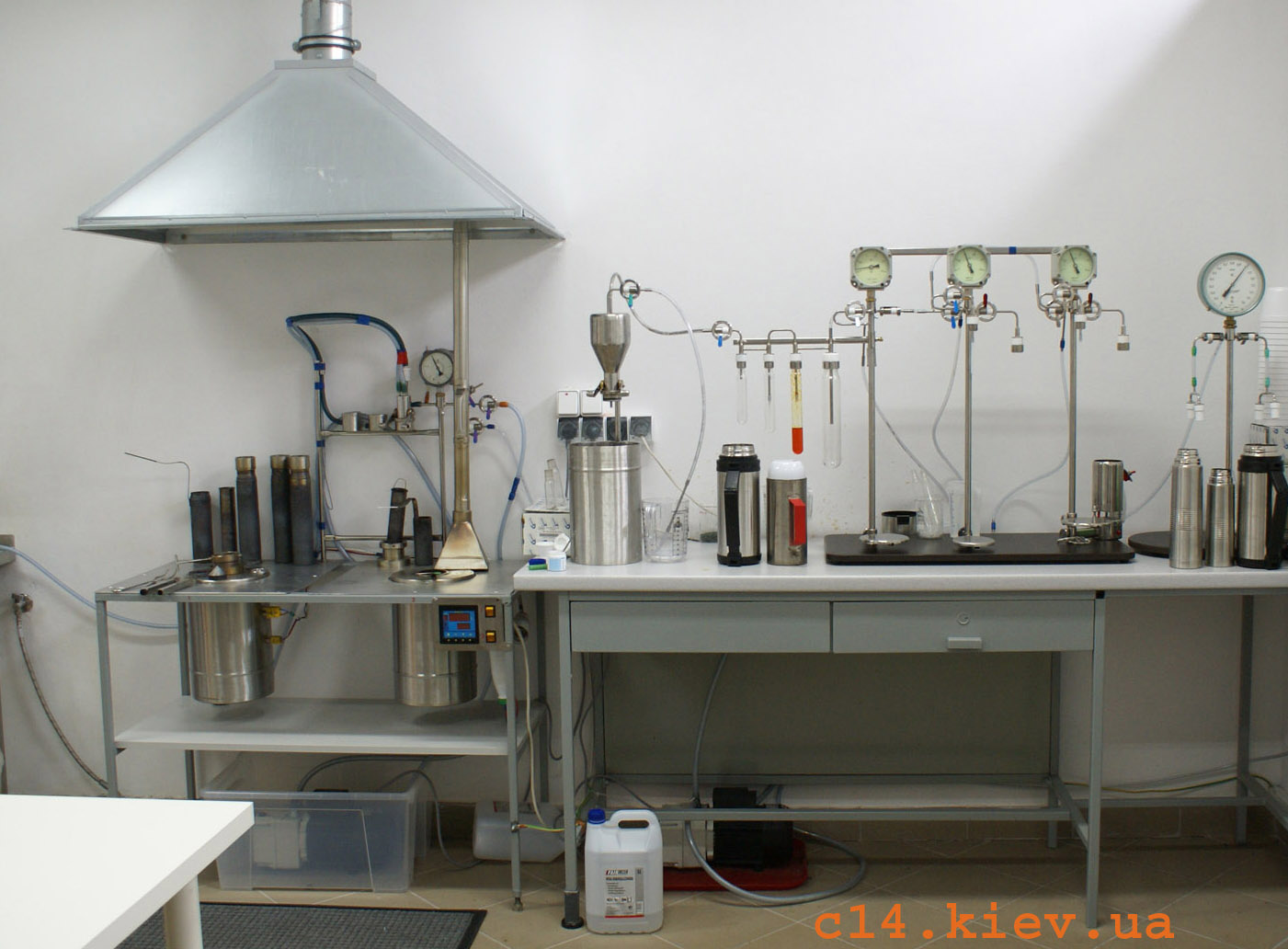

Figure. 2. The laboratory set for low temperature reaction Figure. 3. Complete system for benzene synthesis
